Roller bearing test stand

IMG_20250428_162937 - копия.png

The stand is designed for testing bearings, has automated control and performs test algorithms in automatic mode.

The stand is equipped with a remote control and management module.

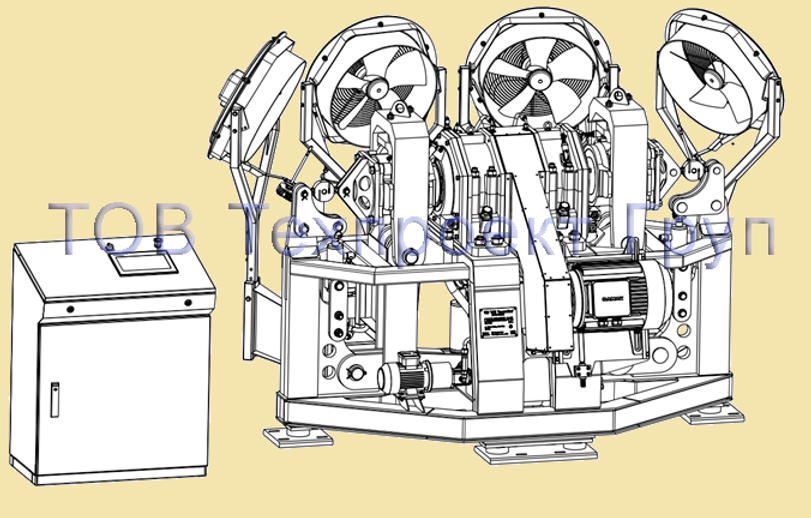

Стенд ТОВ Техпроект Груп 1.png

Technical specifications:



  • Electrical power:

  • - AC voltage, 380 ±10% V;

  • - frequency, 50Hz.

  • Total power, kW 17.

  • Hydraulic system pressure, bar 250.

  •

  • Operating temperature range

  • (limit), from +5 to +30 ºС

  •

  • Overall dimensions WxDxH, mm:

  • - Stand 2700x1830x1812;

  • - hydropower stations 1216x699x1329;

  • - control panel 800x497x974.

  •

  • Weight, kg:

  • - Stand 2600;

  • - 207 hydropower stations;

  • - control panel 80.



Roller bearing test stand

Стенд Техпроект Груп 4.png
